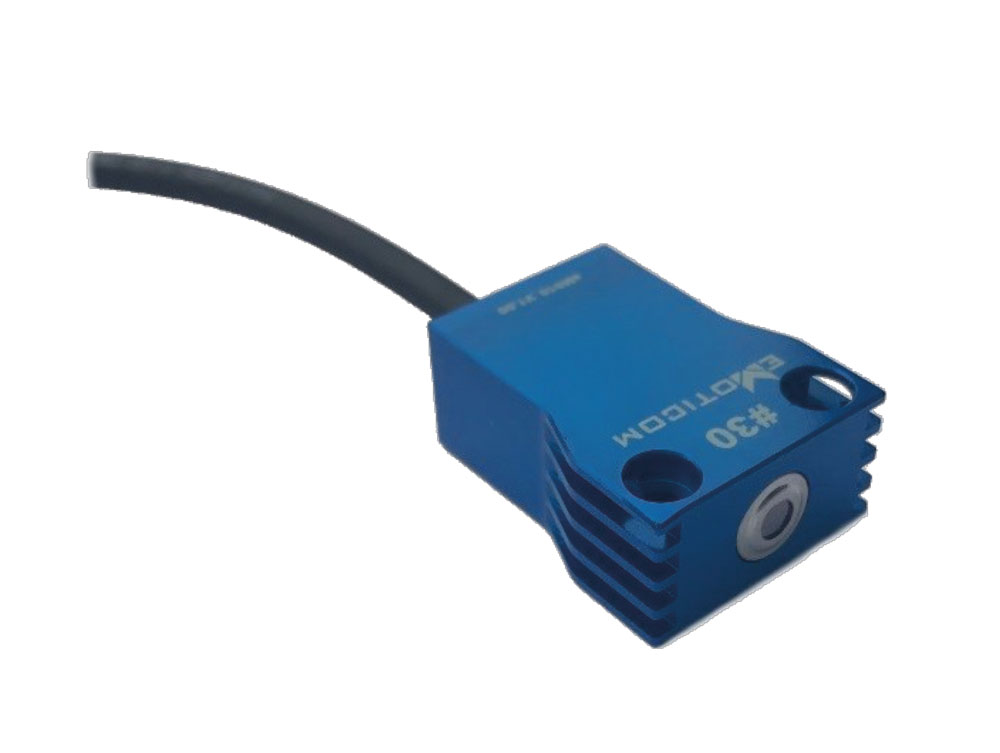

eM010 Infrared CAN Temperature Sensor

RICHIEDI INFORMAZIONI

eM010 is a compact high-performance contactless Infrared Temperature Sensor for Racing Applications with digital and analog outputs. It can be used to measure surface temperatures like tyres, tracks and engine parts. It can be programmed directly via CAN.

SCARICA LA SCHEDA TECNICA

Categoria:

Descrizione

Mean Feautures

  • Target Temperature Measurement Range: -70 … +380 °C
  • Accuracy: <0.5°C FS
  • Max Refresh Rate: 10Hz
  • Digital programmable software filter (moving average)
  • Digital Output: CAN BUS – programmable ID and baudrate
  • Protected Analog Output: 0…5V (3 programmable ranges)
  • Fully programmable via CAN
  • Factory calibrated
  • Battery Voltage (monitored): 8-18V (20mA)
  • Cable length: 20cm — 5 wires AWG24
  • Ambient Temperature Range: -40 … +125°C
  • Material: anodized aluminum
  • Dimensions: 32x25x13mm
  • Weight: <25g (includes cable)
  • Protection grade: IP65
