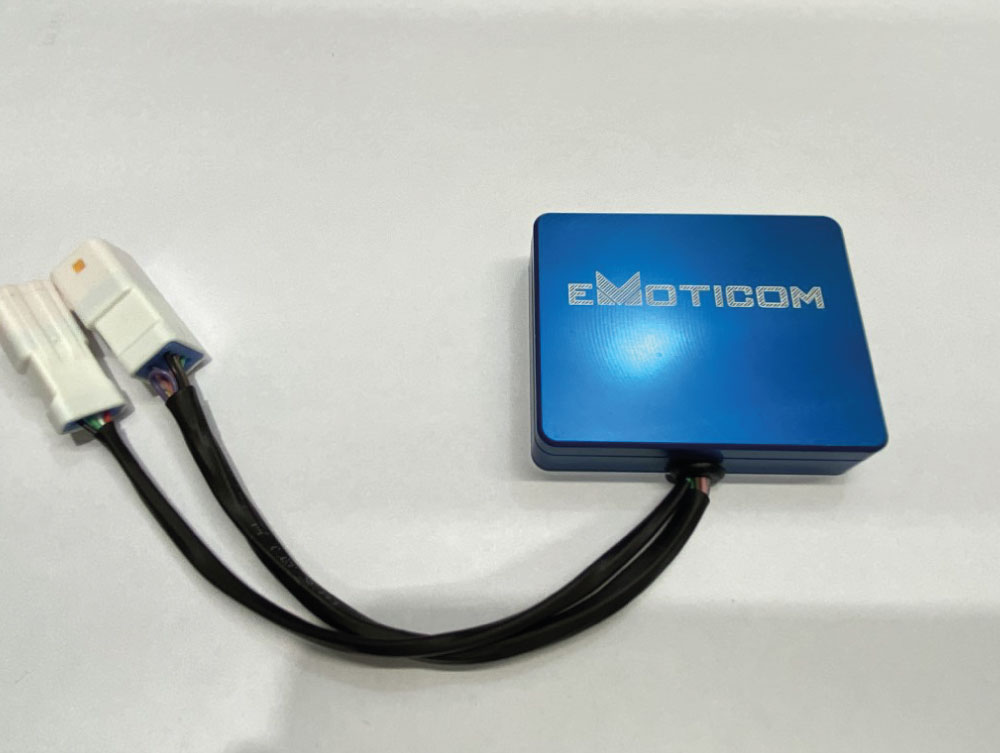

eM040 is a compact 16GB CAN DATA Logger. It can sample up to 100 digital channels on CAN with a maximal sampling rate of 200 Hz. It can also acquire up to 4 analog 0…5V @ 12 bit and 2 on/off channels.

SCARICA LA SCHEDA TECNICA

Categoria:

Descrizione

Mean Feautures

  • Memory Capability: 16 GB
  • Max Digital CAN Channels: 100
  • Max Sample Rate: 200 Hz
  • Analog Inputs: 4 Channels 0..5V @ 12 bit
  • Up to 2 Digital Inputs: (0 / 5V)
  • eMoticom PC Software Caltool for Data Download, Plotting and Analysis
  • USB port for data download
  • Operative voltage: 8-16V
  • Operative Ambient Temperature Range: -40 … +105 °C
  • Size: 53 x 43 x 13 mm
  • Weight: about 50g
