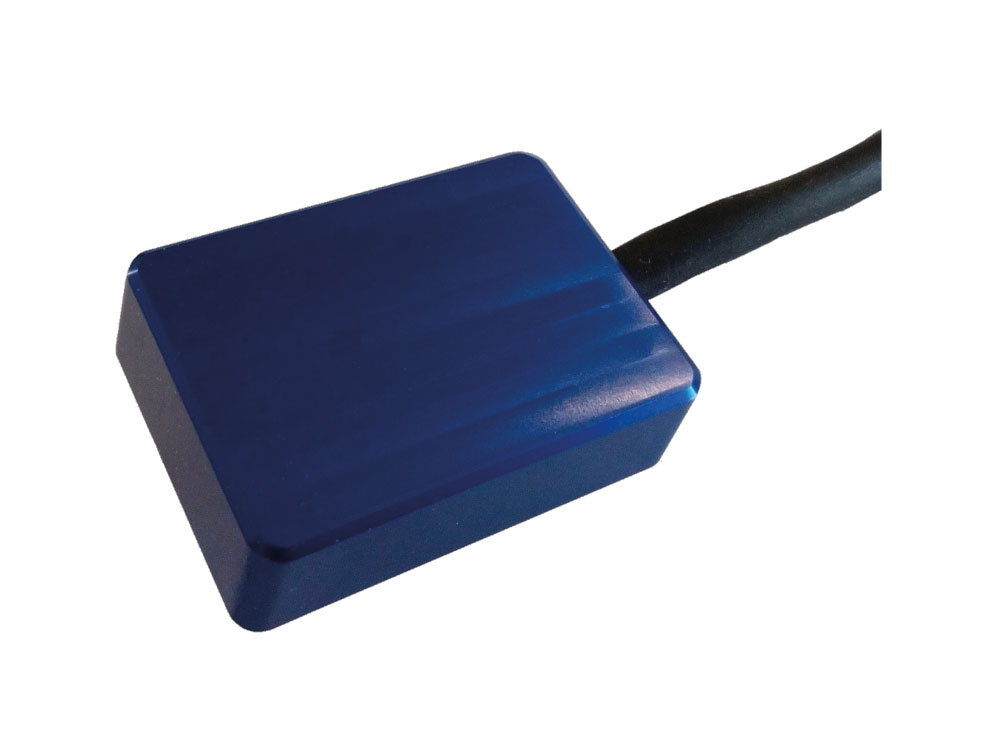

eM019 4 Analog Channels to CAN Converter

RICHIEDI INFORMAZIONI

eM019 is a compact high-performance CAN device that can be used in Racing Applications to acquire up to four analog signals. It can be programmed directly via CAN and it offers also a +5V protected output to supply small external sensors. Battery voltage and Ambient Temperature are acquired and available on CAN too.

SCARICA LA SCHEDA TECNICA

Categoria:

Descrizione

Mean Feautures

  • Up to 4 channels 0…5V (protected from higher voltages)
  • Resolution: 12 bit
  • Data Refresh Frequency: max 200Hz
  • Digital Programmable software filters (moving average) for each channel
  • Digital Output: CAN BUS – programmable ID and baudrate
  • Protected Output: +5V — max 70mA
  • Fully programmable via CAN
  • Battery Voltage (monitored): 8-18V (20mA)
  • Cable length: 20cm — 9 wires AWG24
  • Ambient Temperature Range: -40 … +125°C
  • Material: anodized aluminum
  • Dimensions: 36.0 x 25.0 x 9.5mm
  • Weight: <25g (includes cable)
  • Protection grade: IP65
